TEMPERATUR - DE LUXE, IMMERSION

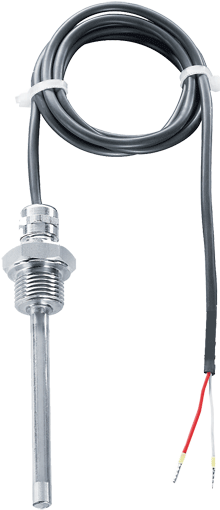

Immersion Screw-In
The IST Immersion Temperature Sensor incorporates a hermetically sealed stainless steel probe for installation in piping, tanks and vessels.

The temperature measuring point is completely integrated into the screw-in sensor and can be easily installed in piping.

The IST sensor provide a reliable solution for hot/chilled water, condenser water or pressure steam applications up to 40bar.

The protection class is IP65 and can be supplied as IP68.

Immersion
These Immersion Sensors TIS and UIT are used for measuring the temperature of liquids in pipework.

TIS contain either a high quality thermistor, nickel or platinum element.

The sensing element is housed in a 150mm long brass probe fitted to an IP65 rated enclosure, for direct mounting into a BRP brass or SSP stainless steel pocket.


Headmounted electronics provide selectable outputs 0-10Vdc or 4-20mA of Active Immersion Transmitter UIT.

The UIT universal temperature transmitter combines four preset range selectable modes and customised output range scaling of PT100A accuracy.

The UIT has PT100A accuracy temperature sensor for accurate measurement of liquid temperatures.

Immersion IP65 for environment of dust and water
The ITF Immersion Temperature Sensor enclosure is corrosion free 30% glass filled polycarbonate designed to withstand temperature extremes, mechanical shock and vibration.

Stainless steel crimp attached to the enclosure for a low profile mating surface.

The locking brass or stainless steel pocket is included, single screw cover attachment, cradle molded into the enclosure to secure the rising cage terminal block are some of the features which improve reliability and lower
cost installation.

The ITF sensors provide a cost effective and reliable solution for hot/chilled water, condenser water or low pressure steam applications.

Necktube IP65
Neck Immersion Temperature Sensor NTF with passive and active output.

Screw-in temperature sensor with enclosure made of impact-resistant plastic, neck tube and separate immersion sleeve.

It is used for the detection of temperature in liquid or gaseous media.

Applications in:

• piping systems

• district heating

• storage tanks

• the entire industrial sector

• hot and cold water system

• oil and lubricant circulations

Immersion Sleeve
The ISF immersion transmitter is used for temperature detection in liquid and gaseous media e.g. by installing it an immersion pocket.

The ISF provides precision remote temperature sensing for building automation systems and mechanical room instrumentation.

The active sensing element is a highly stable precision thermistor or platinum RTD.

The sensing element is sealed with a temperature conductive compound in a
stainless steel probe and can be used where it is possible for the sensed temperature below the ambient dew point, causing condensation to occur the sensor.

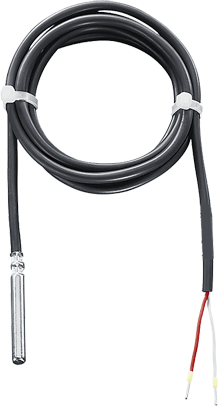

Immersion Cable
The ICF immersion sensor is used for temperature detection in liquid and gaseous media e.g. by installing it an immersion pocket.

The ICF provides precision remote temperature sensing for building automation systems and mechanical room instrumentation.

The active sensing element is a highly stable precision thermistor or platinum RTD.

The sensing element is sealed with a temperature conductive compound in a stainless steel probe and can be used where it is possible for the sensed temperature below the ambient dew point, causing condensation to occur the sensor.

Is available in waterproof probe with protection class IP68 as option.

The all-purpose probe is suitable for plenum mounting, duct mounting, immersion pockets or outside air.

Available with cable for high temperature up to +250° C.
